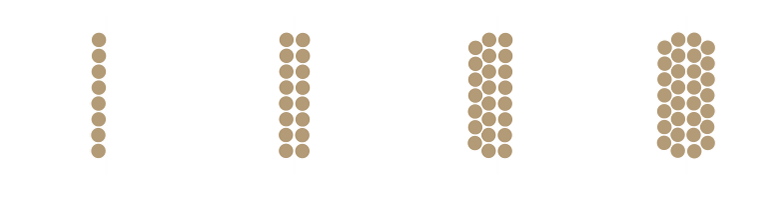

METHODOLOGY WINDING - ROUND WIRE

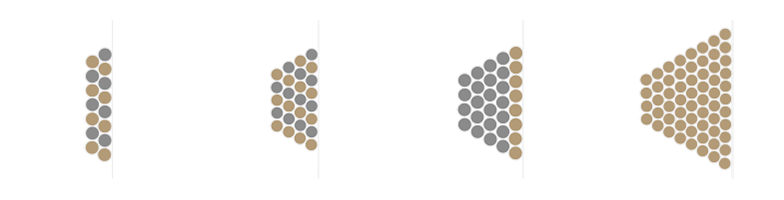

A. Single-layer inside	B. Single-layer inside	C. Single-layer inside &	D. Two-layer inside
or outside winding	& outside winding	two-layer outside winding	& outside winding





E. Two-layer double-	F. Four-layer double-	G. Five-layer two	H. Eight-layer eight
wire shunt-wound	wire shunt-wound	group & two kinds	lead winding
winding	winding	of wire winding





METHODOLOGY WINDING - FLAT WIRE

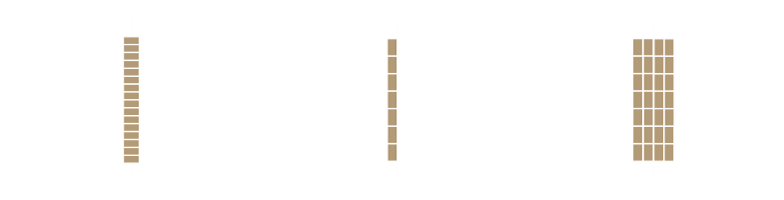

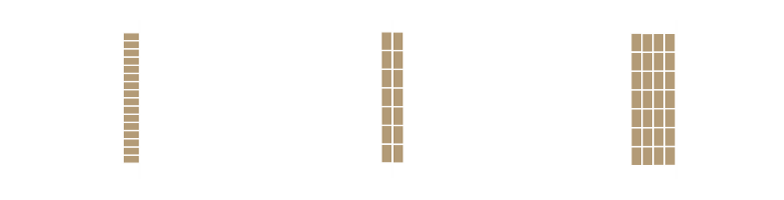

I. Single-layer	L. Single-layer	O. Two-layer inside
vertical winding	parallel winding	& outside parallel

J. Single-layer inside &	M. Single-layer inside &	P. Four-layer parallel
outside vertical winding	outside parallel winding	winding

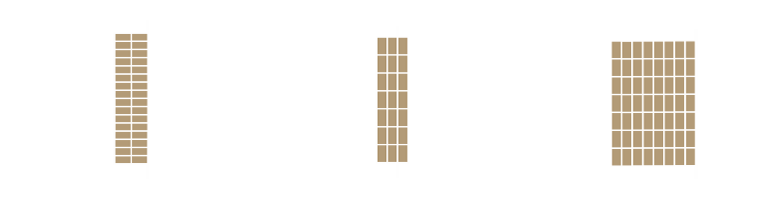

K. Two-layer vertical winding	N. Single-layer inside & two-layer	Q. Eight-layer parallel
	outside  parallel winding	winding



METHODOLOGY WINDING - SQUARE WIRE & HYBRID WIRE WINDING

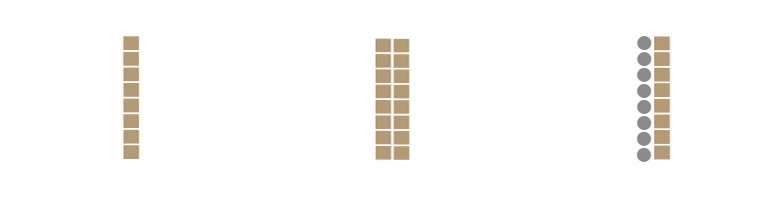

R. Single-layer square wire	T. Single-layer square wire	V. Single-layer square wire
inside or outside winding	inside & outside winding	inside & single-layer
		round wire outside winding

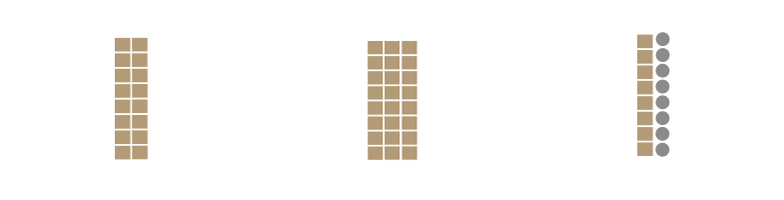

S. Two-layer square wire	U. Square wire single-layer	W. Single-layer round wire
outside winding	inside & two-layer	inside & single-layer
	outside winding	square wire outside winding







X. Single-layer square wire	Y. Single-layer flat wire parallel	Z. Single-layer flat wire
inside & single-layer flat	winding inside  & two-layer	parallel winding & four-layer
wire outside winding	round wire outside winding	round wire outside winding





METHODOLOGY WINDING - SPECIAL WINDING

B-1. Single-layer inside &	C-1. Single-layer inside &	C-2. Three-layer outside	I-1. Single-layer flat wire
single-layer outside round	two-layer outside round	round wire winding	vertical winding
wire two section winding	wire  two section winding
